IDA-Pro and Pascal: Sets & Propogating Types

In Pascal there is the Set object, that you set (n<256) bits and then can later check if bit n is set or not. Sort of like a bool array.

When you decompile a DOS Pascal program the IDA-Pro Flirt signatures will find the Set functions, in this example we will focus Set::MemberOf

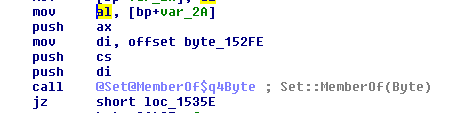

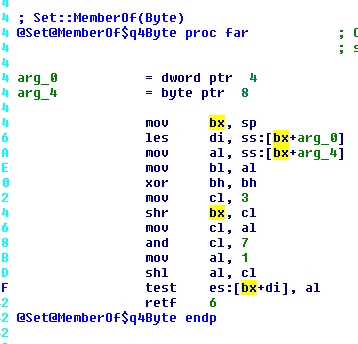

arg_0 is the Set object and arg_4 is the byte we are checking to see if it’s set. When this code is called it looks like this:

and the byte_152FE location is an unknown mess like so:

as we know this data is a Set object, it would be nice if it was represented as such. Now we could Declare this a structure varaible (Alt-Q) by hand and then rename it. This works for a few small cases, but in the Gold Box games, Sets are used to manage lots of things so there are too many of them. The best trick here is to get IDA-Pro to do the work for us.

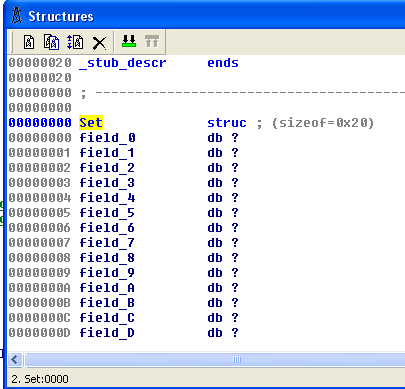

Firstly I assume you have creates a Set structure (needed for the above manual process) that is 0x20 bytes long.

Now go back to Set::MemberOf and Associate a prototype to a function (Y) and change the prototype from:

int __stdcall far Set__MemberOf(__int32 _set);

to:

int __stdcall far Set__MemberOf(Set* set, char);

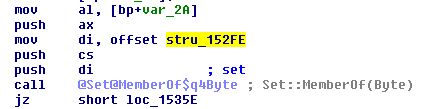

and tada the code call Set::MemberOf is tidy:

and all the Set data blocks are typed for us also:

Magic!
